Screw Air Compressor
Manufacturer

Haidebao Industrial is reliable manufacturer and factory of Screw Air Compressor. Customized Solution.

Single & Two-Stage Series
High-speed Permanent Magnet(PM) motor
VSD energy-saving technology
10–20% Energy Saving
Type: Oil-Free/Oil-Injected, Micro-Oil
Low noise(≤80dB)
Low oil content(≤3ppm)
High reliability
Factory Direct Pricing
ISO-certified manufacturing

We have CE certification, and our products are exported to Europe, Russia, Southeast Asia, and other regions.

Get A Quote

INQUIRY NOW

In order to provide you with better service, Pls complete the following information.

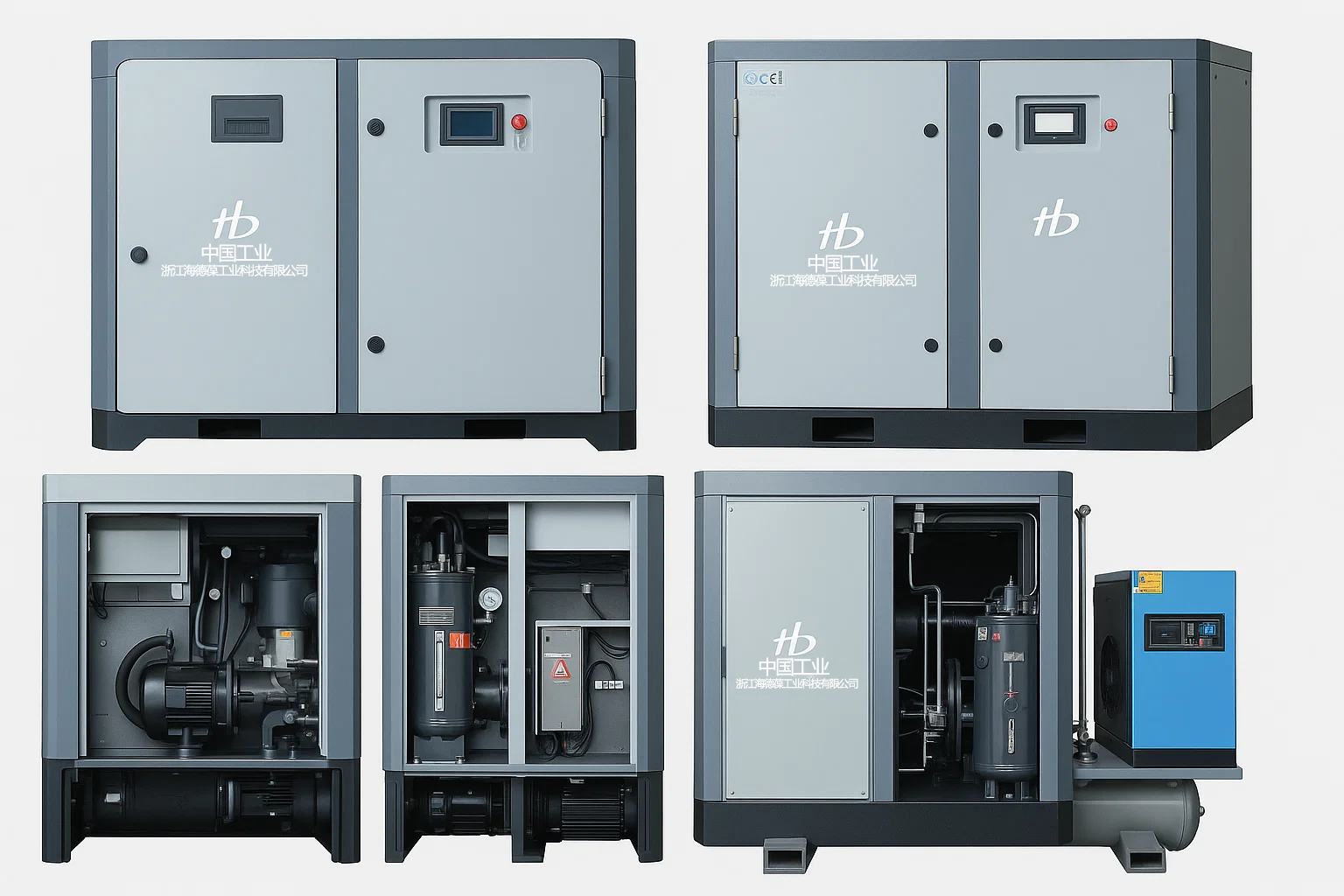

Single-Stage PM VSD Screw Compressors

· Motor Power: 7.5 – 355 kW
· Exhaust Pressure: 7 – 13 bar
· Oil-Free/Oil-Injected, Micro-Oil

Technical Data - Single Stage Screw Compressor

HDB-I Series Permanent Magnet Variable Speed Screw Air Compressors:

Model Motor Power (kW) Exhaust Pressure (bar) Nameplate Flow Standard (m³/min) Outlet Size Overall Dimensions (mm) Unit Weight (kg)
HDB-10A 7.5 7 1.1 G1/2 800*600*815 160
8 1
10 0.8
HDB-20A 15 7 2.5 G3/4 1050*720*1000 240
8 2.3
10 1.45
HDB-30A 22 7 3.8 G1 1200*800*1150 350
8 3.5
10 2.6
HDB-40A 30 7 5.5 G1 1/4 1400*950*1300 480
8 5.0
10 3.9
HDB-60A 45 7 8.0 G2 1700*1100*1550 750
8 7.5
10 6.0
HDB-30A 22 7 3.8 G1 1200*1200*1130 365
8 3.6
10 2.9
HDB-50A 37 7 6.7 G1-1/2 1300*1050*1250 505
8 6.5
10 5.8
HDB-75 55 8 9.25 DN50 1500*1200*1400 950
10 6.5
13 6.0
HDB-100 75 8 13.2 DN50 2500*1600*1700 2150
10 9.5
13 9.0
HDB-120 90 8 17.0 DN80 2500*1600*1700 2600
10 12.6
13 11.6
HDB-150 110 8 20.1 DN80 2980*1800*2050 3360
10 15.1
13 12.1
HDB-180 132 8 23.5 DN100 2980*1800*2050 3580
10 19.0
13 15.4
HDB-220 160 8 28.8 DN100 3280*1880*2120 4100
10 22.3
13 19.1
HDB-250 185 8 32.5 DN100 3280*1880*2120 4200
10 26.6
13 22.0
HDB-270 200 8 36.0 DN100 3450*2000*2150 4800
10 32.0
13 25.0
HDB-300 220 8 39.4 DN125 3450*2000*2150 6000
10 33.6
13 28.4
HDB-340 250 8 44.3 DN125 4000*2150*2250 6350
10 40.4
13 34.1
HDB-380 280 8 48.3 DN125 4000*2150*2250 7100
10 43.3
13 38.6
HDB-430 315 8 54.4 DN125 4000*2150*2250 7300
10 46.7
13 42.6
HDB-480 355 8 65.7 DN125 4500*2150*2250 8000
10 63.7
13 47.9
Note: The dimensions (W*D*H) and weight values are approximate. Nameplate Flow (m³/min) for 8 bar pressure is highlighted in green as the high-flow standard.

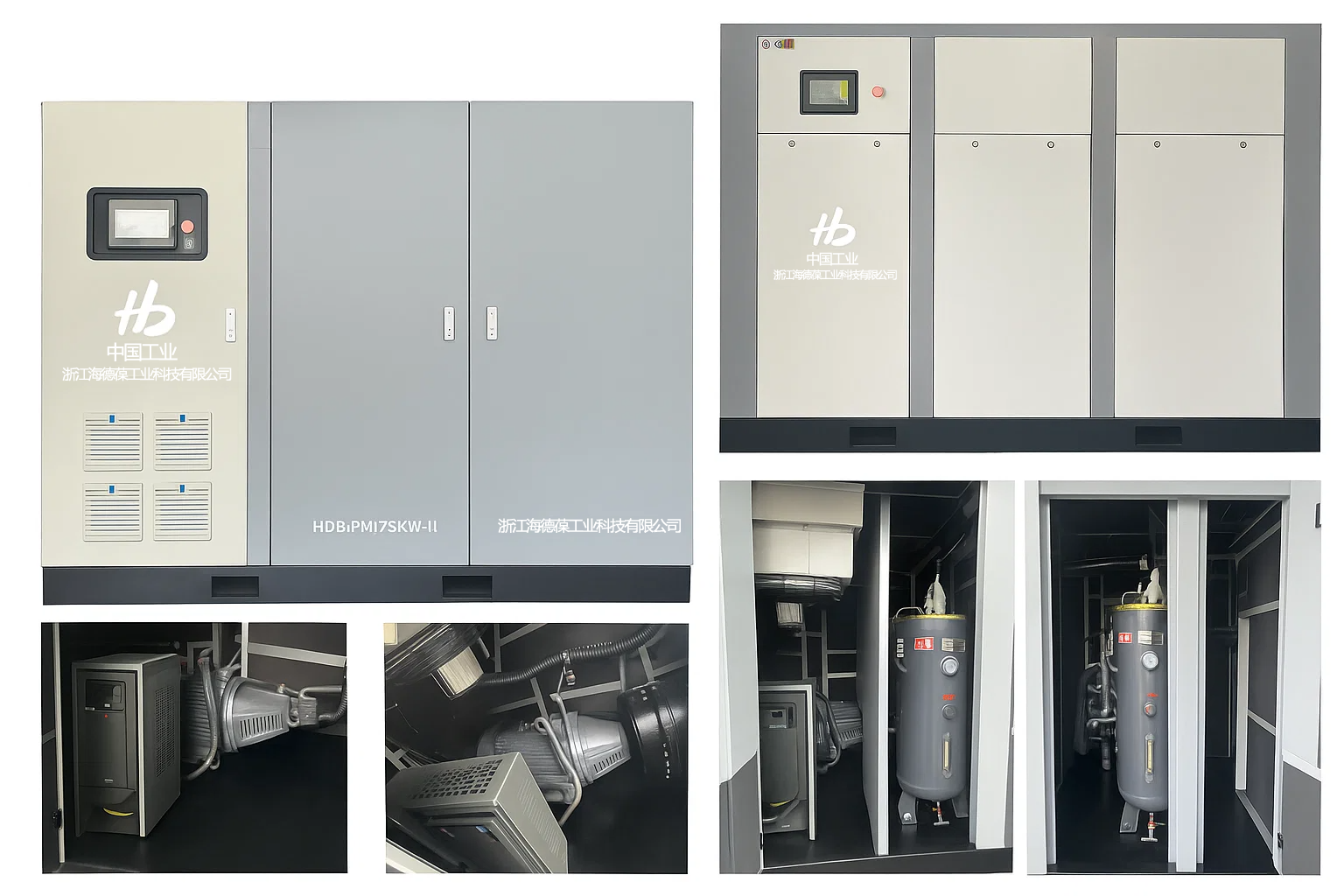

Two-Stage PM VSD Screw Compressors

· Power: 55–355 kW
· Exhaust Pressure: 8–13 bar
· Oil-Free/Oil-Injected, Micro-Oil

Technical Data - Two Stage Screw Air Compressor (Series II)

HDB-II Series Permanent Magnet Variable Speed Screw Air Compressors:

Model (Type) Motor Power (kW) Exhaust Pressure (bar) Nameplate Flow Standard (m³/min) Outlet Size Overall Dimensions (mm) Unit Weight (kg)
HDB-75-II 55 8 11.3 DN50 1500*1200*1400 1200
10 8.0
13 7.5
HDB-100-II 75 8 16.5 DN50 2500*1600*1700 2350
10 12.3
13 12.1
HDB-120-II 90 8 20.2 DN80 2980*1850*2020 3200
10 16.0
13 12.1
HDB-150-II 110 8 23.8 DN80 2980*1850*2020 3360
10 18.6
13 15.8
HDB-180-II 132 8 28.3 DN100 3280*1880*2120 4580
10 22.4
13 19.5
HDB-220-II 160 8 33.0 DN100 3280*1880*2120 4710
10 27.3
13 22.1
HDB-250-II 185 8 39.2 DN100 3450*2000*2150 5150
10 33.5
13 28.0
HDB-270-II 200 8 43.0 DN100 3450*2000*2150 5460
10 37.0
13 33.0
HDB-300-II 220 8 47.8 DN125 4000*2150*2250 6650
10 41.6
13 36.4
HDB-340-II 250 8 54.5 DN125 4000*2150*2250 6750
10 47.4
13 41.1
HDB-380-II 280 8 57.5 DN125 4000*2150*2250 7500
10 52.3
13 46.6
HDB-430-II 315 8 64.4 DN125 4500*2150*2250 8450
10 56.7
13 51.6
HDB-480-II 355 8 72.7 DN125 4500*2150*2250 8950
10 63.7
13 55.9
Note: The dimensions (W*D*H) and weight values are approximate. Nameplate Flow (m³/min) for 8 bar pressure is highlighted in green as the high-flow standard.

Technologies

97%+ PM Motor Efficiency

Rare-earth PMSM delivers ultra-high efficiency verified by third-party testing.

Two-Stage +10–15% Output

Reduced backflow leakage and improved volumetric efficiency.

1:1 Direct Drive

No belts or gears — minimal loss and fewer failure points.

Low Noise Cabinet

Multi-layer acoustic control with a compact structure.

Zhejiang Haidebao Industrial Technology Co., Ltd.
  • Zhejiang Haidebao Industrial Technology Co., Ltd.
  • Zhejiang Haidebao Industrial Technology Co., Ltd.
  • Zhejiang Haidebao Industrial Technology Co., Ltd.
  • Zhejiang Haidebao Industrial Technology Co., Ltd.
Zhejiang Haidebao Industrial Technology Co., Ltd.
Authentic Reliable Quality Naturally Stands Out

· Los Noise: ≤80dB
· Micro Oil: ≤3ppm
· Oil Free: 100% Oil-free
· Permanent Magnetvariable Frequency(Centrifugal Technology): 20% ~ 100%

  • Magnetic Bearing Technology

    Integrated design of machine head and motor.

    Permanent magnet synchronous motor.

    Frequency conversion technology.

  • High-Speed Pm Motor Technology

    The direct-drive rotor of the high-speed permanent magnet motor eliminates the need for a speed-increasing gear structure, thereby improving transmission efficiency.

    The rotor utilizes rare-earth permanent magnets for excitation, with third-party testing confirming a motor efficiency of over 97%.

    The unique high-strength carbon fiber binding technology, validated through a 115% overspeed test, ensures the reliability of the rotor's permanent magnets at high speeds.

  • Typeinverter Technology

    Compressed air naturally flows back from the high-pressure end to the low-pressure end, with higher compression ratios leading to greater leakage. Under the same power and discharge pressure, two-stage compression significantly reduces backflow leakage compared to single-stage compression, greatly improving volumetric efficiency and achieving a 10–15% increase in output.

    The variable frequency design better aligns with customers' air usage needs.

  • High-Efficiency Fluid Machinery Technology

    The new-generation rotor is designed for improved compliance with fluid dynamics.

    The overall machine design undergoes CAE finite element analysis to ensure energy efficiency and stability.

About US

Zhejiang Haidebao Industrial Technology Co., Ltd. is located in Quzhou City, Zhejiang province. The company specializes in a full range of high specification and high-quality aerodynamic products for gas compressors system research and development, design, manufacturing, marketing, and service.

From concept to finished product, we strictly adhere to IsO 9001:2000 product quality standards system. Each product will undergo strict and standardized manufacturing, testing, and inspection verify to ensure reliable quality.

Looking ahead, Haidebao will continue advancing technological innovation and service upgrades, creating shared value with global partners through open collaboration. We will further deepen our "zero-defect" manufacturing philosophy, developing customized solutions for diverse application scenarios through intelligent upgrades and green technology R&D, striving to become the world's most trusted compressed air partner for industrial customers.

Services

  • Wide Variety

    Design & Manufacturing. In stock or customizable.

  • Sample & Catalog

    Feel free to contact us for sample and catalog. OEM/ODM available.

  • Production & Delivery

    Flexible production and delivery policies

  • Business

    Mainly export to Middle East, North and South America, over 100 Countries.

Certificate

Factory

Partner

  • F: Are you a direct manufacturer?

    A: Yes, we are a manufacturer, we have our own factory.

  • F: Can you do customized products?

    A: Yes, we can offer customized products according to the customers' or samples..

  • F: How long can we get the reply if we send the inquiry ?

    A: All the inquiry from customer will be replied within 12 hours, including holiday time.
