Introduction to Oil-Free Twin Screw Air Compressors
Air compressors are essential in numerous industries, serving as the backbone of many production processes by converting power into compressed air for powering machinery, tools, and equipment. Whether in manufacturing, healthcare, or food production, air compressors offer a versatile, reliable source of compressed air to meet various operational demands.
In the world of air compressors, two primary categories dominate: oil-lubricated and oil-free compressors. While oil-lubricated models are more common, oil-free compressors are gaining traction due to their ability to deliver pure, clean air. This feature makes oil-free compressors particularly valuable in industries where air purity is critical—such as food and beverage, pharmaceuticals, and electronics manufacturing.
Among the different types of oil-free compressors, twin screw compressors are particularly well-regarded. These compressors are known for their high efficiency, reliability, and ability to maintain air quality without the risk of oil contamination.
How Oil-Free Twin Screw Air Compressors Work
Oil-free twin screw air compressors operate on a unique and highly efficient compression technology that ensures air purity while delivering reliable performance. The design and mechanism behind twin screw compressors distinguish them from other types of compressors, such as piston and rotary vane compressors.
The Twin Screw Compression Process
At the core of the twin screw compressor is the process of air compression, which begins when ambient air is drawn into the compressor through the intake valve. The air is then directed into the compression chamber, where it is trapped between two interlocking helical rotors, known as the screws. These screws rotate in opposite directions, causing the air to be progressively compressed as it moves along the length of the rotors.
Unlike other types of compressors, where air is compressed by mechanical force such as piston movement, the twin screw compressor relies on the meshing action of the two helical rotors. As the rotors rotate, they continuously decrease the volume of the trapped air, thereby increasing its pressure. The closer the air gets to the discharge port, the higher the pressure becomes, until it is finally released as high-pressure compressed air.
One of the standout features of the oil-free twin screw compressor is the fact that no oil is used to lubricate the rotors. Instead, these compressors use advanced materials and precision engineering to create a tight seal between the rotors and the compressor housing, ensuring minimal friction and wear without the need for oil. This is a critical advantage in applications that require 100% clean, oil-free air.
Key Components and Their Functions
Several key components work together to ensure the efficient operation of oil-free twin screw compressors:
Helical Rotors (Screws): The most important parts of a twin screw compressor are the helical rotors. These precisely engineered rotors interlock with each other, creating a tight seal that compresses the air as it moves through the system. The number of lobes on each rotor and the precise geometry are crucial for ensuring the efficiency and smooth operation of the compressor.
Compression Chamber: This is the space between the rotating screws where the compression process occurs. As air enters the chamber, the rotors progressively trap and compress it. The chamber is designed to optimize air flow and minimize any losses due to turbulence or leakage, which can negatively affect compressor performance.
Timing Gears: The timing gears are responsible for ensuring that the rotors rotate in perfect synchronization. Since the rotors rotate in opposite directions, the timing gears help maintain the precision required for efficient air compression and minimize wear on the rotors.
Cooling Systems: The compression process generates heat, which must be managed to prevent the compressor from overheating and losing efficiency. Oil-free twin screw compressors rely on air or water cooling systems to regulate temperature and ensure optimal performance. These cooling systems are designed to prevent the build-up of excessive heat, which could cause the rotors to warp or seize.
Air End (Compression Unit): The air end refers to the part of the compressor where the compression process takes place. In an oil-free twin screw compressor, the air end is carefully engineered to minimize internal leakage and improve energy efficiency. It houses the rotors and the compression chamber, along with the associated bearings and seals.
Inlet and Outlet Valves: These valves control the flow of air into and out of the compressor. The inlet valve ensures a constant supply of fresh air for compression, while the outlet valve ensures that the high-pressure air is safely directed to the intended application or storage system.
The Role of Cooling Systems in Maintaining Optimal Performance
As mentioned, one of the most critical factors in the operation of oil-free twin screw compressors is temperature management. The air compression process generates significant heat, and if this heat is not dissipated properly, it can reduce efficiency, cause wear on components, and even lead to compressor failure. This is where cooling systems come into play.
Oil-free twin screw compressors typically utilize either air-cooled or water-cooled systems.
Air-cooled systems rely on ambient air to absorb the heat generated during compression. These systems are simpler and typically less expensive but may not be as efficient in environments with higher ambient temperatures.
Water-cooled systems use water as a heat exchange medium, offering superior cooling capacity. These systems are commonly found in larger, industrial-scale compressors that operate in demanding environments.
In both cases, cooling helps maintain a consistent internal temperature, ensuring that the compressor operates at its optimal efficiency and extends its service life. Regular maintenance of cooling systems, including cleaning air filters and checking coolant levels, is essential for preventing overheating and maintaining performance.
Advantages of Oil-Free Technology
Oil-free technology in air compressors offers several distinct benefits, particularly in industries where the purity of compressed air is critical. While traditional oil-lubricated compressors have their advantages, oil-free compressors have gained significant traction due to their ability to deliver cleaner air with reduced maintenance costs and environmental impact.
Purity of Air: Essential for Sensitive Applications
One of the primary reasons industries opt for oil-free compressors is the guarantee of pure, contaminant-free air. Oil-lubricated compressors, while effective in many applications, tend to leave oil traces in the compressed air due to the oil used for lubrication. This can lead to contamination of the final product or system, which is problematic for industries that require high air purity.
For example, in the food and beverage industry, oil traces in compressed air can cause contamination of the products, potentially compromising safety and quality. Similarly, the pharmaceutical and electronics manufacturing industries need completely clean air to ensure that their products are not contaminated during the production process. Any trace of oil could damage sensitive components, interfere with drug production, or result in a non-sterile environment.
Oil-free compressors solve this issue by using no oil in the compression process, making them ideal for applications where purity is paramount. The air produced by oil-free twin screw compressors is free from any contaminants, offering a consistent and safe supply of clean, dry air, which is a critical factor in many industrial processes.
Reduced Risk of Contamination in Sensitive Industries
Contamination, whether from oil, moisture, or particles, can be disastrous in many industries, especially those dealing with healthcare, pharmaceuticals, and electronics. Oil-free twin screw compressors minimize this risk by eliminating the need for oil lubrication. This means that:
Pharmaceuticals: Ensuring sterile, oil-free air is vital to prevent any external contaminants from affecting drug production. Air quality control is critical in maintaining the integrity of drugs and ensuring compliance with strict regulations.
Healthcare: Hospitals and clinics rely on oil-free compressed air for the operation of medical equipment, breathing devices, and even surgical tools. The risk of oil contamination can have serious implications in a medical setting, particularly in respiratory equipment where impurities could lead to patient complications.
Electronics: The production of electronic components, such as semiconductors and circuit boards, requires an ultra-clean environment. Even the smallest amount of oil or particulate matter can result in product defects or malfunctions.
By choosing oil-free twin screw compressors, businesses in these industries ensure that they meet the stringent air quality standards required for safe and effective production.
Lower Maintenance Costs
In traditional oil-lubricated compressors, a significant amount of time and resources are spent on maintaining oil separators, oil filters, and other components that handle lubrication. Regular oil changes are necessary to ensure proper compressor function, adding to both maintenance costs and downtime.
Oil-free twin screw compressors, on the other hand, significantly reduce these maintenance requirements. Without the need for oil, there are fewer components to maintain or replace, such as oil filters and separators. This translates into lower operating costs over the life of the compressor, as the frequency of oil changes and filter replacements is eliminated.
Additionally, these compressors tend to have longer service intervals, as there’s no oil contamination or degradation to worry about. Routine maintenance tasks, such as inspecting air filters, cleaning coolers, and checking seals, are generally the extent of upkeep required, reducing both labor costs and the cost of replacement parts.
Environmental Benefits: No Oil Carryover
The environmental impact of using oil-lubricated compressors can be significant. In oil-lubricated compressors, oil carryover (the unintended release of oil particles into the compressed air) can result in contamination of the environment, which may necessitate costly disposal and cleanup procedures. Oil carryover can also damage surrounding equipment and increase environmental pollution.
With oil-free technology, there is no oil carryover, eliminating the need for oil waste disposal and reducing the overall environmental footprint of the compressor. This aspect is particularly important for industries that prioritize sustainability and environmental responsibility.
As businesses and industries are increasingly held accountable for their environmental impact, opting for oil-free compressors provides an eco-friendly alternative that supports green initiatives and corporate responsibility. Moreover, the reduced need for oil disposal helps to comply with regulatory requirements aimed at reducing environmental harm.
Lower Energy Consumption
While oil-free twin screw compressors tend to be slightly more expensive upfront than their oil-lubricated counterparts, their energy efficiency can offset the initial investment over time. This is because oil-free compressors are designed to run with minimal friction, thanks to the advanced materials and precision engineering of the rotors. This design allows for a more efficient compression process, which, in turn, reduces overall energy consumption.
Oil-free twin screw compressors also often come with variable speed drives (VSD) or advanced control systems that adjust the motor speed based on demand. These systems optimize energy use, ensuring that the compressor only operates at the required power level. This adaptability further enhances energy efficiency, which can result in substantial cost savings over time.
Extended Compressor Lifespan
Since oil-free compressors do not rely on oil lubrication, they experience less wear and tear on internal components. This contributes to a longer lifespan for the compressor. The absence of oil also reduces the chances of internal contamination and the risk of oil-related damage, which can occur in traditional compressors if oil is not properly maintained.
Additionally, oil-free twin screw compressors tend to have higher reliability, reducing the likelihood of breakdowns or unscheduled downtime. These compressors are built for high-duty cycles, making them ideal for continuous operation in demanding industrial environments.
Compliance with Industry Regulations
Many industries are governed by strict regulations that dictate the quality of compressed air used in their processes. Oil-free compressors are often the best choice for compliance with these regulations, particularly in sectors such as:
Food and beverage: Regulations often require the use of clean, non-contaminated air in food processing and packaging to ensure safety and meet hygiene standards.
Pharmaceuticals: Stringent air quality standards must be maintained to avoid contamination during drug manufacturing.
Healthcare: Medical equipment and breathing systems require clean, oil-free air to prevent health risks for patients.
Using oil-free twin screw compressors ensures that businesses meet the necessary air quality standards and maintain compliance with these regulations.
Applications of Oil-Free Twin Screw Compressors
Oil-free twin screw compressors are essential in industries where air purity, reliability, and efficiency are not just important but often a matter of safety, product quality, and regulatory compliance. These compressors are specifically designed to meet the high standards required in sensitive applications where oil contamination can result in catastrophic consequences.
Food and Beverage Industry: Ensuring Food Safety and Quality
In the food and beverage industry, the quality and safety of the products are paramount. Compressed air is used in a wide range of applications within food processing, packaging, and handling. This can include everything from packaging machinery and pneumatic conveyor systems to fermentation and mixing processes.
Oil-lubricated compressors are unsuitable in these environments because even the smallest amount of oil contamination in the air can compromise the integrity of the food products. Oil-free twin screw compressors eliminate this risk by providing clean, contaminant-free air, ensuring that the products remain free from harmful substances.
For instance, in food packaging, where compressed air is used to seal packages, the presence of oil could contaminate the product, making it unsafe for consumption. Similarly, in brewing and beverage production, oil-free air helps maintain sterility during fermentation and prevents oil particles from mixing with the product.
With oil-free twin screw compressors, food and beverage manufacturers can confidently rely on a continuous supply of clean air, compliant with FDA and HACCP (Hazard Analysis Critical Control Point) guidelines, which are designed to maintain food safety standards.
Pharmaceuticals: Maintaining Sterile Environments for Drug Production
The pharmaceutical industry demands the highest standards of air purity to protect the integrity of drugs and medical devices. In drug production, especially in environments like clean rooms, the air must be free of contaminants like oil, dust, and bacteria. Contaminated air can compromise the sterility of drug products, leading to non-compliance with Good Manufacturing Practices (GMP) and potentially endangering patients' health.
Oil-free twin screw compressors are the ideal solution for these applications because they prevent oil contamination in critical environments, ensuring a sterile atmosphere for sensitive processes such as tablet coating, mixing, and filling. These compressors are widely used in pharmaceutical manufacturing plants, clean rooms, and sterile filling lines where the risks of contamination are high.
Moreover, the absence of oil in the compressed air system means there is no risk of it interacting with sensitive chemicals or drugs during production, making oil-free compressors a reliable choice for maintaining quality assurance and ensuring the safety of pharmaceutical products.
Electronics Manufacturing: Preventing Contamination of Sensitive Components
In electronics manufacturing, even the smallest amount of contamination can cause major problems. Products like microchips, semiconductors, circuit boards, and other electronic components are highly sensitive to impurities such as oil or dust particles in the air. The presence of contaminants during manufacturing can lead to defects, malfunctioning, or reduced product lifespan.
Oil-free twin screw compressors provide clean, dry air for applications such as dust-free assembly lines, inert gas blending, and laser cutting systems used in electronics. These compressors ensure that contaminants like oil particles do not interfere with the delicate processes involved in making high-precision electronics.
By opting for oil-free technology, electronics manufacturers can ensure the reliability of their production processes, improve product quality, and reduce the risk of costly defects caused by contamination.
Healthcare: Supplying Clean Air for Medical Equipment and Patient Care
In the healthcare industry, the quality of compressed air used in medical equipment can have direct implications for patient safety and the effective operation of critical systems. Oil-free compressed air is essential in hospitals, clinics, and healthcare facilities where it powers equipment such as ventilators, anesthesia machines, air-driven surgical tools, and breathing systems.
Oil contamination in compressed air used for medical applications can have dangerous effects, potentially causing respiratory problems, infections, or malfunctioning of critical equipment. Oil-free twin screw compressors eliminate this risk, ensuring that the air supplied to medical devices is clean, dry, and free of contaminants.
Additionally, oil-free compressors are used to supply air for medical pneumatic systems and air-assisted diagnostic equipment, such as dental tools, oxygen generation systems, and air compressors in MRI machines. In these cases, the purity and cleanliness of the air are essential to both patient safety and equipment reliability.
Textile Industry: Powering Pneumatic Machinery Without Oil Contamination
In the textile industry, compressed air is used to power various pneumatic tools, equipment, and machinery, such as looms, fabric finishing machines, and sewing machines. Oil contamination in this environment can lead to several problems, including fabric discoloration, staining, or even defects in the finished goods.
Oil-free twin screw compressors are ideal for the textile industry because they provide a constant, reliable source of clean, oil-free air that powers equipment without the risk of contaminating materials. This is particularly important in industries where fabric quality is critical, such as in apparel manufacturing or technical textiles, where the integrity and appearance of the fabric can be compromised by oil residues.
In addition, oil-free compressors reduce the need for complex filtration and cleaning systems, streamlining operations and ensuring that machinery runs smoothly without frequent downtime for maintenance.
Other Industrial Applications: Manufacturing, Automotive, and More
In addition to the industries mentioned above, oil-free twin screw compressors find applications in a variety of other industrial sectors. For example:
Automotive Industry: Used in paint shops, assembly lines, and tire production, oil-free compressors ensure that tools and equipment receive a clean, reliable source of compressed air without the risk of oil contamination.
Chemical Manufacturing: Oil-free air is essential in processes where oil contamination could alter the properties of chemicals, pigments, or coatings. Compressors are used in reactors, mixers, and powder handling systems.
Construction and Mining: Compressed air is essential for powering tools such as drills, jackhammers, and pneumatic equipment in construction and mining. Oil-free compressors help prevent contamination from affecting sensitive equipment in these rugged environments.
Energy and Sustainability: Supporting Green Initiatives
As industries worldwide continue to prioritize sustainability, oil-free twin screw compressors also contribute to energy efficiency and reduced environmental impact. Many oil-free compressors are equipped with variable speed drives (VSDs), which allow for dynamic adjustments to the compressor's motor speed, based on real-time demand, optimizing energy consumption.
By choosing oil-free compressors, industries also avoid the disposal concerns and environmental risks associated with used oils and oil filters. This reduces overall waste and contributes to green manufacturing practices.
Key Features to Consider When Choosing a Compressor
Choosing the right oil-free twin screw compressor for your application is a crucial decision that can impact the performance, efficiency, and maintenance costs of your system. Not all compressors are created equal, and various factors should be considered to ensure that the chosen compressor meets your operational needs.
Airflow Capacity (CFM)
Airflow capacity, measured in Cubic Feet per Minute (CFM), is one of the most important specifications to consider when selecting a compressor. It indicates the volume of air the compressor can deliver over a set period, and it directly influences how well the compressor will meet the air demand of your equipment or process.
Choosing the Right CFM: It's essential to match the compressor’s airflow capacity to the needs of your application. For example, a small-scale operation with minimal air demand may require a compressor with a lower CFM rating, while larger industrial operations or facilities with multiple air-driven tools may require a higher CFM.
Efficiency Considerations: Over-sizing or under-sizing a compressor can lead to inefficient operation. A compressor that is too large will waste energy, while one that is too small may struggle to keep up with demand, leading to frequent cycling, higher energy costs, and potential wear.
When selecting a compressor, calculate the total air consumption of your equipment (tools, machines, etc.) and select a unit that provides a little more than the total demand to ensure consistent performance.
Pressure Range (PSI)
The pressure rating, typically measured in Pounds per Square Inch (PSI), is another critical factor when choosing a compressor. This determines how much pressure the compressor can generate and how it will perform with the tools or systems you're using. Different applications require different pressure levels, so it’s important to select a compressor with the appropriate pressure range.
Low Pressure (80–100 PSI): Common in general industrial applications, such as powering air tools and pneumatic machinery in light manufacturing.
Medium Pressure (100–150 PSI): Suitable for applications such as assembly lines, workshops, and high-power tools.
High Pressure (150+ PSI): Often required in industries like pharmaceuticals or electronics, where more powerful air is needed to meet demanding applications or to power high-performance equipment.
Make sure the compressor's maximum pressure aligns with your equipment's pressure requirements. If the compressor's PSI rating is too low, it may not be able to deliver sufficient air pressure, leading to suboptimal performance.
Motor Power (HP)
The motor power of the compressor, measured in horsepower (HP), indicates the energy output and drives the system's performance. The higher the motor power, the more air the compressor can produce at a higher pressure. However, this also means higher energy consumption.
Selecting the Right Motor Power: It’s crucial to balance motor power with your application’s needs. For example, if you're running multiple large air-powered machines or require continuous operation, you'll need a compressor with a higher motor power. For smaller, intermittent operations, a lower HP compressor may suffice.
Energy Efficiency: A more powerful motor can mean more energy consumption, but modern oil-free twin screw compressors often come equipped with variable speed drives (VSD), which adjust the motor’s speed based on demand. This helps optimize energy use, reducing waste and ensuring that the compressor operates at peak efficiency.
Control Systems
Modern oil-free twin screw compressors come equipped with advanced control systems that provide precise control over compressor performance, enabling energy savings, improved reliability, and ease of maintenance.
Smart Controls: Look for compressors that offer smart, digital controls or microprocessor-based systems, which allow for real-time monitoring of compressor performance, including airflow, pressure, temperature, and energy consumption. These systems can help optimize energy usage by adjusting operational parameters automatically based on demand.
Remote Monitoring and Connectivity: Some compressors offer remote access through mobile apps or cloud-based platforms. This allows operators to monitor the compressor’s performance remotely, receive alerts for maintenance, and even troubleshoot issues before they become critical.
Energy Efficiency Modes: Many compressors have energy-saving modes or load/unload cycles that help reduce energy consumption during periods of low demand. Look for models with integrated energy-saving features to maximize operational efficiency.
Noise Levels
Noise is often an overlooked factor when choosing a compressor, but it can significantly impact the workplace environment, especially in settings where quiet operation is crucial. Oil-free twin screw compressors tend to be quieter than other types of compressors, but noise levels still vary between models.
Decibel (dB) Rating: The noise produced by the compressor is typically measured in decibels (dB). If noise is a concern, look for compressors with low dB ratings. Generally, oil-free compressors tend to be quieter than oil-lubricated models, but quieter options may be available within the oil-free category as well.
Soundproof Enclosures: Some manufacturers offer soundproof enclosures or acoustic covers for their compressors. These can significantly reduce noise levels, making them ideal for environments where noise regulations or worker comfort are priorities.
Size and Footprint
The physical size and footprint of the compressor should be a key consideration, particularly if you have limited space in your facility. Oil-free twin screw compressors are generally more compact than other types of compressors, but their size still varies based on their airflow capacity, motor power, and other features.
Space Constraints: Be sure to measure the space where the compressor will be installed and account for any additional space needed for airflow, maintenance access, and future expansion. A compressor that's too large for your workspace can lead to inefficiencies, while one that's too small might not provide the necessary performance.
Portability: If your operations require mobility, look for oil-free compressors that are designed for portability. Some units come with built-in wheels or compact designs that allow them to be easily moved to different areas of the facility as needed.
Maintenance Requirements
Ease of maintenance is another key factor in selecting an oil-free twin screw compressor. These compressors generally require less maintenance than oil-lubricated models, but some components still need periodic inspection and servicing.
Oil-free Components: Since there is no oil to change, the maintenance focus will be on air filters, cooling systems, and seals. Look for compressors with easy access to these components to minimize downtime during maintenance.
Reliability and Serviceability: Consider the reputation of the manufacturer for providing support and replacement parts. Look for models that are known for their reliability, and ensure there is a service network available to assist with any technical issues.
Warranty and Support
Finally, consider the warranty and after-sales support offered by the manufacturer. A strong warranty can protect you from unforeseen repairs and costs, while responsive customer service ensures that you can address issues quickly.
Extended Warranties: Some manufacturers offer extended warranties that cover major components, such as the motor or rotors. This can provide peace of mind and lower the total cost of ownership over the compressor's lifespan.
Maintenance Tips for Oil-Free Twin Screw Compressors
Oil-free twin screw compressors are known for their low maintenance requirements, but like any piece of industrial equipment, they need regular attention to ensure optimal performance and reliability. Proper maintenance can help extend the lifespan of your compressor, improve energy efficiency, and prevent costly repairs.
Regular Inspection of Air Filters
Air filters play a critical role in keeping your oil-free compressor running smoothly by preventing contaminants like dust, dirt, and debris from entering the system. Over time, filters can become clogged, restricting airflow and reducing efficiency.
Inspect Filters Regularly: Check the air filters at regular intervals, ideally every 1,000 to 2,000 operating hours, depending on the environment. If you notice reduced airflow or pressure, it may be a sign that the filters are dirty or clogged.
Replace or Clean Filters: If the filters are dirty, replace or clean them as needed. Some filters are reusable and can be cleaned, while others need to be replaced after a certain period. Always follow the manufacturer's guidelines for cleaning or replacing filters.
Consider Operating Environment: If your compressor operates in a dusty or harsh environment, you may need to inspect the filters more frequently. Environments with high levels of airborne contaminants may cause filters to clog faster, affecting performance.
Check and Maintain Cooling Systems
Cooling systems are essential for maintaining the optimal operating temperature of your oil-free twin screw compressor. Without proper cooling, the compressor may overheat, causing damage to internal components and reducing efficiency.
Inspect Cooling Fins and Vents: Ensure that the cooling fins, radiator, and vents are free from dust, debris, or buildup that could hinder airflow. Clean the components regularly to maintain proper cooling.
Monitor Temperature: Many compressors are equipped with built-in temperature sensors. Monitor the temperature readings to ensure the compressor is operating within the recommended range. If the temperature exceeds the safe limits, it could indicate a problem with the cooling system or an issue with the compressor's performance.
Coolant Levels: If your compressor uses coolant, check the coolant levels regularly and top up if necessary. Low coolant levels can lead to overheating and reduced efficiency.
Examine Seals and Gaskets
Seals and gaskets are vital components of an oil-free twin screw compressor. They ensure that air and coolant remain in the system and prevent external contaminants from entering. Over time, seals and gaskets can wear out, leading to leaks or reduced performance.
Check for Air Leaks: Periodically inspect seals and gaskets for any signs of wear, cracks, or air leaks. Air leaks can cause the compressor to work harder, leading to higher energy consumption and reduced efficiency.
Replace Worn Seals: If you detect any leaks or damaged seals, replace them promptly to prevent further issues. It's essential to use high-quality, genuine replacement parts for the best results.
Monitor Compressor Performance
Regularly monitoring the performance of your oil-free twin screw compressor will help you catch issues early, before they become significant problems. Many modern compressors feature built-in diagnostic systems that make performance monitoring easier.
Track Operating Hours: Keep track of your compressor's operating hours, as this will help you determine when maintenance tasks such as filter changes, inspections, and oil-free rotor maintenance should be performed.
Listen for Unusual Sounds: Pay attention to any unusual noises or vibrations during operation. Strange sounds, such as knocking, grinding, or whining, could indicate mechanical issues like misalignment, worn parts, or imbalanced rotors.
Monitor Pressure and CFM: Regularly check the compressor's output pressure (PSI) and airflow (CFM). If the performance drops, it could be a sign of internal wear, clogged filters, or issues with the compression process.
Maintain the Cooling System
Efficient cooling is essential for maintaining the temperature and overall performance of the compressor. Without it, the compressor can overheat, causing potential damage to its internal components. Here’s how to keep your cooling system in check:
Clean the Air Intake: Make sure the air intake is free from any obstructions or debris. This allows for optimal airflow and cooling, preventing the compressor from overheating.
Inspect the Cooling Fans: Check if the cooling fans are operating correctly. If the fans are malfunctioning or dirty, clean or replace them. Cooling fans are responsible for maintaining proper temperature levels during compressor operation.
Check Condenser and Radiator: For compressors with a radiator or condenser, inspect these components for blockages or corrosion. Clean them as needed and replace any damaged parts to ensure efficient heat dissipation.
Keep an Eye on Electrical Components
Oil-free twin screw compressors rely on electrical systems to control and regulate operation. Faulty wiring, electrical connections, or sensors can cause operational problems or even lead to a breakdown.
Inspect Electrical Connections: Check electrical components and wiring for signs of wear, corrosion, or loose connections. A loose or damaged electrical connection can cause power loss or inconsistent performance.
Test Control Systems: Ensure that control systems, such as pressure sensors, temperature gauges, and variable speed drives (VSDs), are functioning correctly. Any discrepancies in readings could indicate a malfunction or an underlying issue.
Follow Manufacturer’s Maintenance Schedule
Every oil-free twin screw compressor comes with a manufacturer-recommended maintenance schedule. This schedule includes the recommended intervals for filter changes, inspection of components, and other essential tasks. Adhering to the manufacturer's maintenance recommendations ensures the compressor operates efficiently and helps prevent unnecessary breakdowns.
Refer to the Manual: Always refer to the user manual and maintenance guidelines for your specific model. These guidelines provide detailed instructions on the optimal maintenance intervals for each component.
Use Genuine Parts: When replacing parts, always use the manufacturer’s recommended parts to ensure compatibility and reliability. Using substandard or incompatible parts can result in poor performance and void your warranty.
Maintain Lubrication-Free Components
Although oil-free compressors don’t require lubrication for their main screw rotors, some other components (such as bearings or seals) might require occasional lubrication.
Lubrication for Bearings: Check whether the compressor’s bearings require lubrication and apply it as needed. Using the correct lubricant helps maintain smooth operation and prevents excessive wear.
Monitor Lubrication System: If your compressor uses a lubrication system for auxiliary components, ensure the system is operating properly and the oil levels are adequate.
Professional Servicing and Troubleshooting
Even with regular maintenance, occasional professional servicing is essential. Trained technicians can perform in-depth checks and repairs that may be difficult to address on your own. They can inspect the system for wear, replace worn-out components, and ensure the compressor is functioning at peak efficiency.
Schedule Regular Inspections: Plan for regular servicing by a professional technician who can conduct more advanced diagnostics and maintenance tasks.
Troubleshoot Before Breakdown: If you notice any performance issues, such as a drop in pressure or airflow, it's important to troubleshoot before the compressor breaks down completely. Early detection of problems can help avoid costly repairs and downtime.
Common Problems and Troubleshooting
While oil-free twin screw compressors are designed for reliability and low maintenance, like any complex machinery, they can experience problems that may impact performance or cause downtime. Understanding common issues and how to troubleshoot them is essential for keeping your compressor running efficiently and avoiding costly repairs.
Compressor Not Starting
If your oil-free twin screw compressor fails to start, it could be due to a variety of issues. This is one of the most common and frustrating problems, but fortunately, there are several potential solutions.
Possible Causes:
Power Supply Issues: The most common cause for a compressor failing to start is a power supply issue, such as a blown fuse or tripped circuit breaker.
Faulty Start/Stop Switch: If the start or stop switch is malfunctioning, it may prevent the compressor from turning on.
Motor Issues: If the motor is faulty, worn out, or experiencing electrical problems, it may not engage.
Control System Malfunctions: Some compressors have safety sensors built into the control system that prevent the unit from starting if an issue is detected (e.g., low pressure, high temperature).
Troubleshooting Steps:
Check the Power Supply: Inspect the power supply and ensure the compressor is plugged in and receiving voltage. Verify that circuit breakers or fuses are not tripped or blown. Reset the breaker or replace the fuse if necessary.
Test the Start/Stop Switch: Check the start/stop switch for any signs of malfunction. If it appears defective, replace it.
Inspect the Motor: Look for any signs of wear or damage to the motor. Test the motor with a multimeter to check for electrical faults. If the motor is defective, it may need to be repaired or replaced.
Review the Control System: If your compressor has a diagnostic control system, check for error codes. Review the manual or use the system's display to troubleshoot and reset any safety sensors or alarms.
Low Air Pressure or Airflow
Low air pressure or airflow can significantly affect the efficiency of your operations, as it means the compressor is not providing enough compressed air to meet demand. This issue is often linked to one of the following causes.
Possible Causes:
Clogged or Dirty Air Filters: When air filters become clogged with dust or debris, they can restrict airflow, leading to reduced air pressure.
Leaks in the System: Leaks in the compressor or downstream air lines can cause air to escape, reducing the overall pressure.
Malfunctioning Pressure Regulator: A faulty or incorrectly set pressure regulator can result in lower-than-expected pressure output.
Worn Compressor Components: Over time, the screw rotors or other internal components may wear, reducing the compressor's ability to maintain pressure.
Troubleshooting Steps:
Inspect and Clean Air Filters: Check the air filters for dirt and debris. If they are clogged, clean or replace them as necessary.
Check for Leaks: Inspect all air hoses, connections, and seals for any signs of leakage. Use soapy water or a leak detection spray to find leaks and tighten or replace the affected parts.
Adjust the Pressure Regulator: Verify that the pressure regulator is set correctly and is functioning as expected. If it’s damaged or malfunctioning, replace or calibrate it.
Inspect Internal Components: If there are no issues with the filters, leaks, or regulator, check the compressor’s internal components. Worn rotors, bearings, or seals can reduce the compression efficiency. If you suspect internal wear, contact a technician for further inspection.
Unusual Noises
Unusual noises, such as grinding, knocking, or whining, can be an indication of a mechanical issue with the compressor. These noises should never be ignored, as they could signal a serious problem that needs attention.
Possible Causes:
Worn or Misaligned Rotors: If the screw rotors are worn or misaligned, they can create excessive friction, leading to grinding or knocking noises.
Loose or Damaged Bearings: Worn or loose bearings can cause rattling or whining noises during operation.
Imbalanced Components: If internal components like the rotors or flywheel are not properly balanced, they can generate vibrations and unusual sounds.
Air Leaks: Leaking air can sometimes create a high-pitched whining or hissing sound.
Troubleshooting Steps:
Inspect the Rotors: Turn off the compressor and inspect the rotors for wear or misalignment. If you notice any damage or unusual wear patterns, the rotors may need to be replaced or re-aligned.
Check the Bearings: Inspect the bearings for wear or damage. Worn bearings should be replaced immediately to prevent further damage to the compressor.
Balance the Components: If imbalanced components are suspected, check for loose or damaged parts. Tighten or replace any faulty components.
Look for Leaks: Perform a leak test to check for any air leaks that could be causing the noise. Seal or replace any faulty parts that are leaking air.
Overheating
Overheating is a common problem in oil-free twin screw compressors and can lead to system failure if not addressed promptly. Compressors are designed to operate within a specific temperature range, and excessive heat can cause damage to the motor, seals, and other components.
Possible Causes:
Insufficient Cooling: If the cooling system is not functioning properly, the compressor can overheat.
Blocked Air Intake: A clogged air intake or dirty cooling fins can reduce airflow and cooling efficiency, causing the compressor to overheat.
Faulty Thermostat or Temperature Sensors: Malfunctioning temperature sensors can provide incorrect readings, preventing the compressor from activating its cooling mechanisms.
Overloaded Compressor: Operating the compressor beyond its capacity, especially for extended periods, can lead to overheating.
Troubleshooting Steps:
Check the Cooling System: Inspect the cooling fins, radiator, and cooling fans for blockages or damage. Clean the components and ensure that air can flow freely to cool the system.
Examine the Air Intake: Check the air intake for dirt or debris that may be obstructing airflow. Clean the intake area as needed.
Test Temperature Sensors: Use a multimeter to test the temperature sensors and thermostat. If these components are faulty, replace them to restore accurate temperature regulation.
Avoid Overloading: Ensure that the compressor is not being overloaded or operated beyond its rated capacity. If necessary, upgrade to a higher-capacity model.
High Energy Consumption
An increase in energy consumption is a common sign that something is wrong with the compressor, and it can lead to higher operating costs if left unchecked.
Possible Causes:
Dirty or Clogged Filters: Restricted airflow due to dirty filters can cause the compressor to work harder to meet the required air output, leading to increased energy consumption.
Leaks in the System: Air leaks waste energy, forcing the compressor to work harder to maintain the desired pressure.
Improperly Set Control Systems: If the compressor's control settings are not optimized for efficiency, it can lead to unnecessary energy use.
Troubleshooting Steps:
Clean or Replace Filters: Check the filters and clean or replace them as needed to ensure proper airflow.
Seal Leaks: Inspect for any leaks in the system and seal them promptly to prevent air from escaping.
Optimize Control Settings: Review and adjust the compressor’s control system to ensure it is operating efficiently. If your compressor has a variable speed drive (VSD), make sure it is correctly adjusting to air demand.
EN
English
Español
عربى

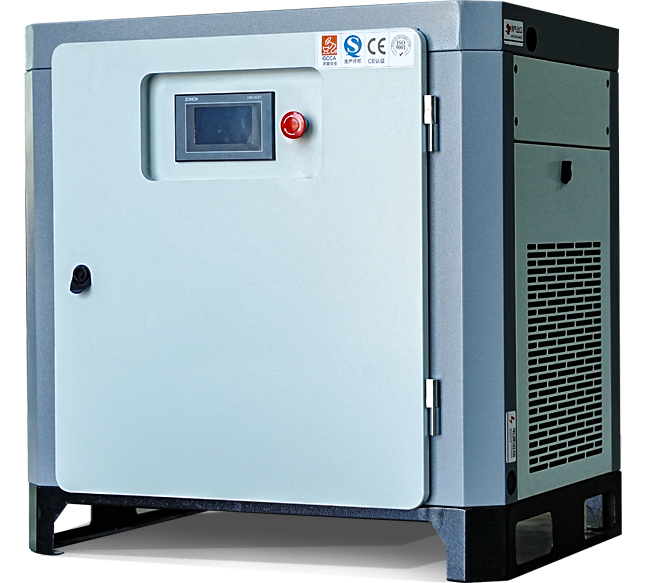

HDB-10APermanent Magnet Variable Frequency Screw Air Compressor
HDB-20APermanent Magnet Variable Frequency Screw Air Compressor
HDB-30APermanent Magnet Variable Frequency Screw Air Compressor
